Generating personalized OpenGraph embed images with typst

Let's spruce up those social embeds! 2025-11-09

by Luna Nova

---

OpenGraph meta tags allow customizing how a site's link previews display when embedded elsewhere. Originally popularized by facebook, OpenGraph data is now used by most social media, chat apps, and read-it-later services like Instapaper.

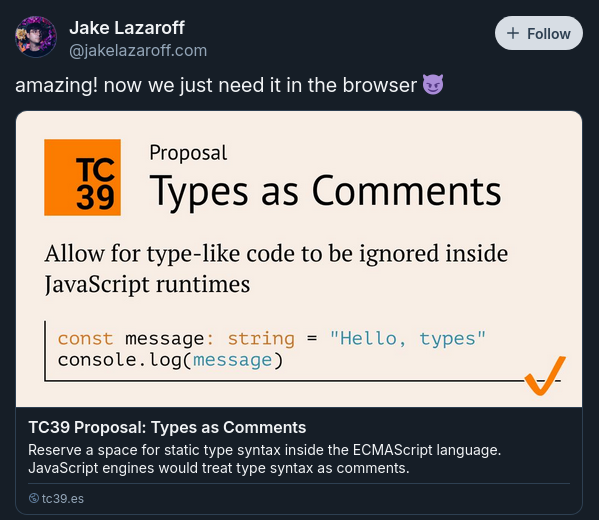

Let's take a look at how a recent tc39.es proposal's opengraph meta tags are implemented and see it in action:

<!-- https://tc39.es/proposal-type-annotations/ -->
<meta property="og:title" content="TC39 Proposal: Types as Comments"/>
<meta property="og:type" content="article"/>
<meta property="og:image:type" content="image/png"/>
<meta property="og:image:width" content="1200"/>
<meta property="og:image:height" content="630">
<meta property="og:image" content="https://confident-galileo-43471d.netlify.app/assets/og-image.png">

I was inspired by crates.io^{crates_inspiration}'s new OpenGraph embed images to use a https://typst.app/ template for lunnova.dev's preview cards.
We don't need a production grade crate like crates.io; a quick shell script will suffice.

A bash script extracts TOML frontmatter^toml_parse from articles and then passes it to a typst template, and outputs a 1200×630^og_size image.

#let data = json(bytes(sys.inputs.data))
#set page(width: 1200pt, height: 630pt, margin: 0pt)
#set text(font: "CaskaydiaCove NF", fill: white)

// Cropped background - each article gets unique viewport into 1515×2154 bg
#place(left + top, block(width: 1200pt, height: 630pt, clip: true, {
  place(left + top, dx: -data.crop_x * 1pt, dy: -data.crop_y * 1pt,
    image("bg-full.png", width: 1515pt, height: 2154pt))
}))

// Title and description
#place(left + top, dx: 45pt, dy: 45pt, rect(
  fill: rgb(0,0,0,65%), radius: 8pt, inset: 30pt, {
    text(size: 64pt, weight: "bold", data.title)
    v(20pt)
    if data.at("description", default: none) != none {
      text(size: 36pt, fill: rgb(220,220,220), data.description)
    }
  }
))

// Tags, date, branding
#place(bottom + left, dx: 45pt, dy: -45pt, stack(dir: ttb, spacing: 10pt, {
  for (i, tag) in data.tags.enumerate() {
    if i > 0 { h(8pt) }
    box(fill: rgb(180,180,220,30%), radius: 4pt, inset: (x: 8pt, y: 8pt),
      text(size: 36pt, fill: rgb(200,200,230), "#" + tag))
  }
}, {
  stack(dir: ltr,
    text(size: 48pt, data.date), h(1fr),
    text(size: 48pt, weight: "semibold", "lunnova.dev"))
}))

Full template: og-template/template.typ

The template I settled on renders title, description, tags and date over a cropped starfield background. Crop coordinates are deterministic^hash_crop based on the article path's hash, giving each post a unique view of the same background if I regenerate without storing per-article state. Honestly that's overengineering and it really doesn't matter if those move on regen but eh, it's fun.

# … eliding details of extracting front matter
# full impl is available at https://github.com/LunNova/Blog/

DATA_JSON=$(jq -n \
    --arg title "$TITLE" \
    --arg description "$DESCRIPTION" \
    --arg date "$DATE" \
    --argjson tags "$TAGS" \
    --argjson crop_x "$CROP_X" \
    --argjson crop_y "$CROP_Y" \
    '{title: $title, description: $description, date: $date, tags: $tags, crop_x: $crop_x, crop_y: $crop_y}')

echo "Generating: '$TITLE' → $OUTPUT_PATH"
set -x

pushd "$TEMPLATE_DIR" >/dev/null
TEMP_2X=$(mktemp --suffix=.png)
trap "rm -f $TEMP_2X" EXIT

typst compile --format png --input "data=$DATA_JSON" template.typ "$TEMP_2X"
popd >/dev/null
magick "$TEMP_2X" -resize 1200x630 -quality 95 "$OUTPUT_PATH"
optipng -quiet -strip all "$OUTPUT_PATH"

./generate-og-image.sh content/articles/typst-opengraph-embed/index.md
Generating: 'Generating personalized OpenGraph embed images with typst' → content/articles/typst-opengraph-embed/og-image.png
+ pushd /home/lun/sync/dev/lun/Blog/og-template
++ mktemp --suffix=.png
+ TEMP_2X=/tmp/nix-shell.ijbkuM/nix-shell-2799969-130597325/tmp.Wk2f9FYuzX.png
+ trap 'rm -f /tmp/nix-shell.ijbkuM/nix-shell-2799969-130597325/tmp.Wk2f9FYuzX.png' EXIT
+ typst compile --format png --input $'data={\n  "title": "Generating personalized OpenGraph embed images with typst",\n  "description": "Let\'s spruce up those social embeds!",\n  "date": "2025-11-09",\n  "tags": [\n    "lunnova.dev-meta"\n  ],\n  "crop_x": 2,\n  "crop_y": 406\n}' template.typ /tmp/nix-shell.ijbkuM/nix-shell-2799969-130597325/tmp.Wk2f9FYuzX.png
+ popd
+ magick /tmp/nix-shell.ijbkuM/nix-shell-2799969-130597325/tmp.Wk2f9FYuzX.png -resize 1200x630 -quality 95 content/articles/typst-opengraph-embed/og-image.png
+ optipng -quiet -strip all content/articles/typst-opengraph-embed/og-image.png
+ rm -f /tmp/nix-shell.ijbkuM/nix-shell-2799969-130597325/tmp.Wk2f9FYuzX.png

@misc{typst-opengraph-embed,
    author = {Luna Nova},
    title = {Generating personalized OpenGraph embed images with typst},
    year = {2025},
    url = {https://lunnova.dev/articles/typst-opengraph-embed/},
    urldate = {2025-11-09}
}

tagged lunnova.dev-meta
